3-Roll Standard Pyramid Type Machine

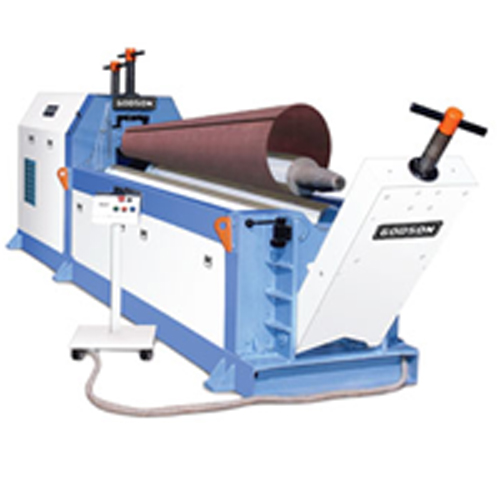

3 ROLL STANDARD PYRAMID TYPE PLATE BENDING MACHINE
TECHNICAL SPECIFICATION

MODEL NO.	CAPACITY MM.	ROLL DIA. MM	MAIN DRIVE H.P.	END. DROPPER. H.P.
GPB 10:06 GPB 12:06 GPB 15:06 GPB 20:06 GPB 25:06 GPB 30:06	1000 X 6 MM 1250 X 6 MM 1500 X 6 MM 2000 X 6 MM 2500 X 6 MM 3000 X 6 MM	130/105 135/110 160/135 170/140 185/155 220/180	3.00 3.00 5.00 7.50 10.00 10.00	0.75 0.75 0.75 1.00 1.00 1.00
GPB 12:10 GPB 15:10 GPB 20:10 GPB 25:10 GPB 30:10	1250 X 10 MM 1500 X 10 MM 2000 X 10 MM 2500 X 10 MM 3000 X 10 MM	160/135 170/140 185/155 220/165 245/225	5.00 7.50 10.00 10.00 20.00	1.00 1.00 1.00 1.00 1.00
GPB 12:12 GPB 15:12 GPB 20:12 GPB 25:12 GPB 30:12	1250 X 12 MM 1500 X 12 MM 2000 X 12 MM 2500 X 12 MM 3000 X 12 MM	185/140 185/155 215/170 240/180 260/225	7.50 10.00 10.00 15.00 20.00	1.00 1.00 1.00 1.00 1.00
GPB 12:16	1250 X 16 MM	205/165	10.00	1.00

MODEL NO.	CAPACITY MM.	ROLL DIA. MM	MAIN DRIVE H.P.	END. DROPPER. H.P.
GPB 20.16 GPB 25.16 GPB 30.16	2000 X 16 MM 2500 X 16 MM 3000 X 16 MM	230/180 250/210 290/220	10.00 20.00 25.00	1.00 1.00 1.00
GPB 12.20 GPB 15.20 GPB 20.20 GPB 25.20 GPB 30.20	1250 X 20 MM 1500 X 20 MM 2000 X 20 MM 2500 X 20 MM 3000 X 20 MM	220/170 240/190 260/220 275/215 290/250	10.00 12.50 15.00 20.00 25.00	1.00 1.00 1.00 1.00 1.00
GPB 12:25 GPB 15:25 GPB 20:25 GPB 25:25 GPB 30:25	1250 X 25 MM 1500 X 25 MM 2000 X 25 MM 2500 X 25 MM 3000 X 25 MM	260/220 275/230 290/250 310/260 330/275	15.00 20.00 20.00 30.00 40.00	1.00 1.00 1.00 1.00 1.00
GPB 12:30 GPB 15:30 GPB 20:30 GPB 25:30	1250 X 30 MM 1500 X 30 MM 2000 X 30 MM 2500 X 30 MM	280/220 290/230 320/250 360/260	15.00 20.00 25.00 30.00	1.00 1.00 1.00 1.00
